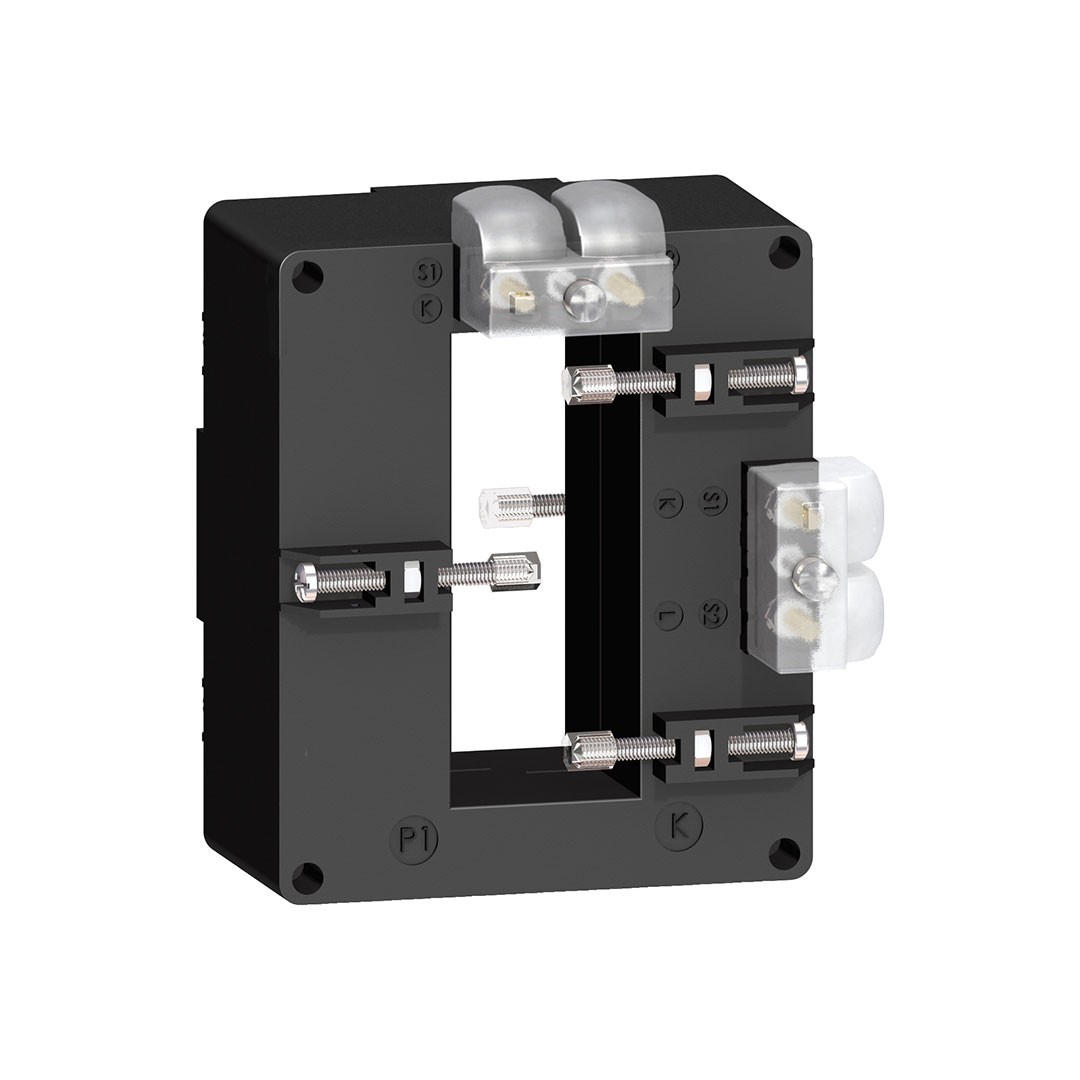

Akım Trafosu – DD tip, 34×84, 1500 A

RangePowerLogicproduct nameCTProduct or component typeCurrent transformerSecondary current                                                              5 AAccuracy classClass 0.5 at 15 VAClass 1 at 20 VA[In] rated current1500 ACurrent transformer typeTropicalised for busbarCurrent transformer ratio                                                   1500/5[Ith] conventional free air thermal current60 kADynamic withstand current2.5 IthMaximum safety factor5[Ue] rated operational voltage< 720 V AC 50/60 Hz[Ui] rated insulation voltage3 kVMounting modeInsulated locking screwMounting supportBusbarWidthOutside: 96 mmInner: 35 mmHeightOutside: 116 mmInner: 84 mmDepthFrame : 40 mmTotal : 78.4 mmProduct weight0.676 kg[Uimp] rated impulse withstand voltage3 kVElectrical insulation classClass BOpening of bars84 x 34SealingWith
