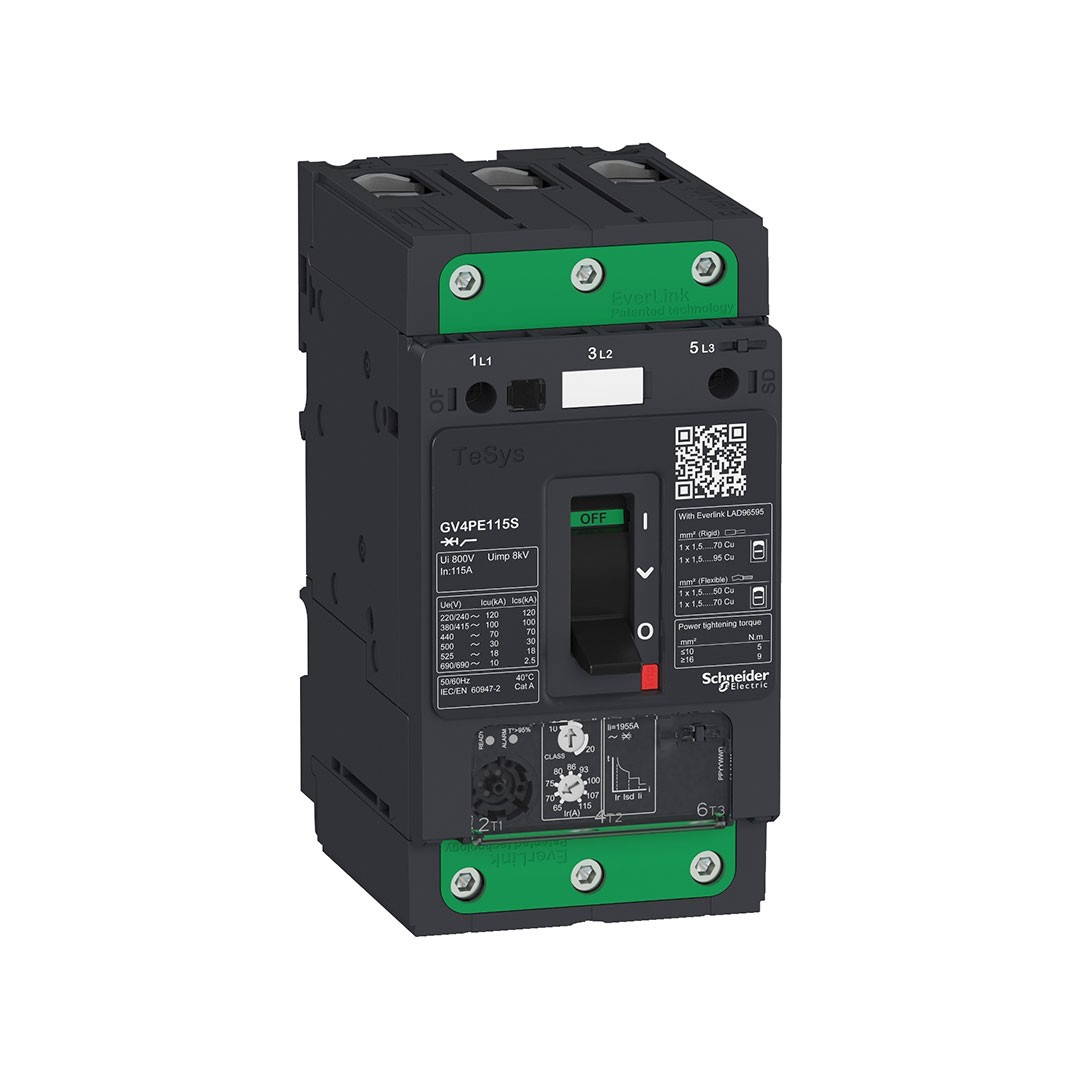

TeSys GV4 Motor Devre Kesici Termik Many. 3P 80A 100kA

Range of productTeSys GV4RangeTeSys DecaDevice short nameGV4PEProduct nameTeSys GV4Product or component typeMotor circuit breakerDevice applicationMotor protectionTrip unit technology                                            Thermal-magneticElectronicPoles description3PUtilisation categoryCategory A conforming to IEC 60947-2AC-3 conforming to IEC 60947-4-1Operating positionAny positionMotor power kW37 kW at 400…415 V AC 50/60 Hz45 kW at 500 V AC 50/60 Hz22 kW at 400…415 V AC 50/60 Hz30 kW at 500 V AC 50/60 Hz37 kW at 660…690 V AC 50/60 Hz45 kW at 660…690 V AC 50/60 Hz55 kW at 660…690 V AC 50/60 Hz30 kW at 400…415 V AC 50/60 Hz37 kW at 500 V AC 50/60 HzBreaking capacity120 kA Icu at 220…240 V AC 50/60 Hz conforming to IEC 60947-2100 kA Icu at 380…415 V AC 50/60 Hz conforming to IEC 60947-270 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-230 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-218 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2100 kA at 208Y/120 V AC 50/60 Hz conforming to UL 60947100 kA at 240 V AC 50/60 Hz conforming to UL 6094765 kA at 480Y/277 V AC 50/60 Hz conforming to UL 6094710 kA Icu at 660…690 V AC 50/60 Hz conforming to IEC 60947-225 kA at 600Y/347 V AC 50/60 Hz conforming to UL 60947Control typeToggle[In] rated current80 AMagnetic tripping current1360 A[Ue] rated operational voltage690 V AC 50/60 Hz conforming to IEC 60947-2[Ui] rated insulation voltage800 V AC 50/60 Hz conforming to IEC 60947-2[Ith] conventional free air thermal current115 A conforming to IEC 60947-4-1[Uimp] rated impulse withstand voltage            8 kV conforming to IEC 60947-2Power dissipation per pole4.6 WMechanical durability40000 cyclesElectrical durability14000 cycles for AC-3 at 440 V In/27000 cycles for AC-3 at 440 V InMaximum operating rate25 cyc/hRated dutyContinuous conforming to IEC 60947-4-1Connections – terminalsEverLink BTR screw connectors (top) 1 cable(s) 1.5…70 mm² – solidEverLink BTR screw connectors (top) 1 cable(s) 1.5…50 mm² – flexibleEverLink BTR screw connectors (bottom) 1 cable(s) 2.5…95 mm² – solidEverLink BTR screw connectors (bottom) 1 cable(s) 2.5…70 mm² – flexibleTightening torque9 N.m for cable 16…95 mm²5 N.m for cable 1.5…10 mm²Mechanical robustnessVibrations: +/- 1 mm 2…13.2 Hz conforming to IEC 60068-2-6Vibrations: 0.7 gn 13.2…100 Hz conforming to IEC 60068-2-6Shocks: 15 gn 11 ms conforming to IEC 60068-2-27Phase failure sensitivityYes conforming to IEC 60947-4-1Height155 mmWidth81 mmDepth116 mmNet weight1.45 kgColourGrey (RAL 7016)Suitability for isolationYes conforming to IEC 60947-1
