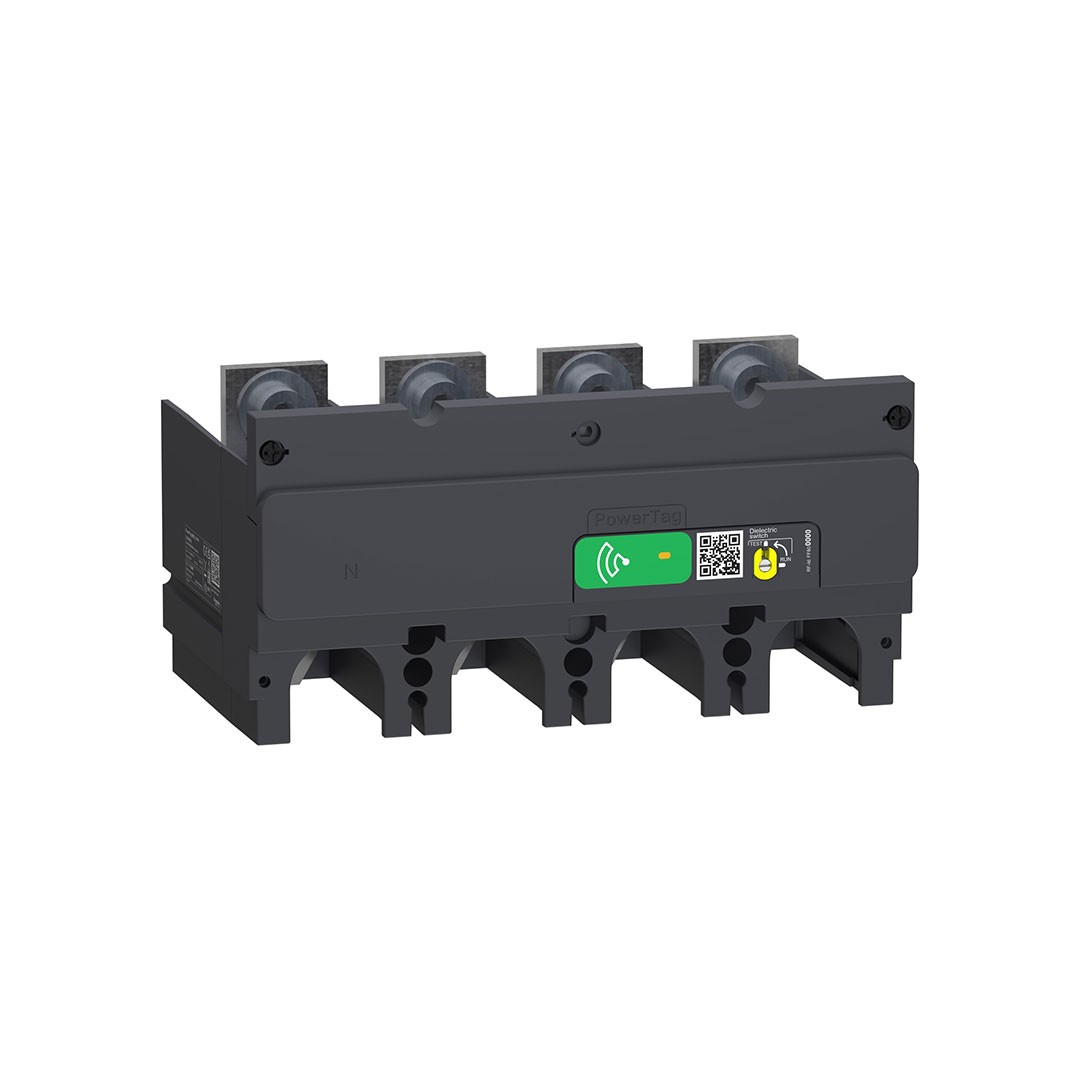

Range of productPowerLogicproduct namePowerTag M630Product or component typeEnergy sensorPoles3P + NMaximum current [Imax] 630 A[Ib] Basic current100 AStarting current400 mASaturation current1260 AProduct specific applicationEnergy managementOverload alarmPower factorLoad monitoringCircuit monitoringConcentrator compatibilityActi9 Smartlink SI BActi9 Smartlink SI DActi9 PowerTag Link CActi9 PowerTag LinkActi9 PowerTag Link HDHarmony HubWiser IP moduleEcoStruxure Panel Server UniversalEcoStruxure Panel Server AdvancedPrismaSet ActiveRange compatibilityCompact NSX Compact NSX400…630Compact INS Compact INS320…630Compact INV Compact INV320…630Compact NS Compact NS400/630EasyPact EasyPact CVS400EasyPact EasyPact CVS630Type of measurementActive and reactive energyActive and reactive powerApparent powerCurrentVoltagePower factorAccuracy classClass 1 active energy conforming to IEC 61557-12Class 2 reactive energy conforming to IEC 61557-12Class 1 active power conforming to IEC 61557-12Class 2 reactive power conforming to IEC 61557-12Class 2 apparent power conforming to IEC 61557-12Class 1 current conforming to IEC 61557-12Class 0.5 voltage conforming to IEC 61557-12Class 1 power factor conforming to IEC 61557-12Metering typePower factor 0…1: class 1 at 25 °C conforming to IEC 61557-12Active energy Ep IN/OUT/tot 0…281 x 10exp(9) kWh: class 1 at 25 °C conforming to IEC 61557-12Reactive energy Ep IN/OUT/tot 0…281 x 10exp(9) kVARh: class 2 at 25 °C conforming to IEC 61557-12Voltage U12, U23, U31 320…480 V: class 0.5 at 25 °C conforming to IEC 61557-12Voltage V1N, V2N, V3N 184…276 V: class 0.5 at 25 °C conforming to IEC 61557-12Current I1, I2, I3, Iavg 20…630 A: class 1 at 25 °C conforming to IEC 61557-12Apparent power S, S1, S2, S6 221 VA…1048 kVA: class 2 at 25 °C conforming to IEC 61557-12Active power P, P1, P2, P6 221 W…1048 kW: class 1 at 25 °C conforming to IEC 61557-12Reactive power Q, Q1, Q2, Q6 221 VAR…1048 kVAR: class 2 at 25 °C conforming to IEC 61557-12Frequency 45…65 HzMounting locationBottomMounting supportOn circuit breakerConnection pitch45 mmProduct destinationSwitchboardEvent managementVoltage loss with measured current at voltage lossTransmission support mediumRadio frequency 2.4…2.4835 GHz conforming to IEEE 802.15.4 (11…26) transmission time < 5 msEmission power10 mW[Imp] maximum permanent current1.2 x InMounting mode Bolt-onTightening torque50 N.msupply voltage230 V AC, +/- 20 %, between phase and neutral400 V AC, +/- 20 %, between phasesNetwork frequency50 Hz60 HzMaximum power consumption3.7 VAStandardsIEC 61557-12IEC 61010-1ETSI EN 301 489-1IEC 61010-2-030IEC 61326-1ETSI EN 300 328Height91 mmWidth185 mmDepth110 mmProduct weight1000 gColourDark grey (RAL 7016)
