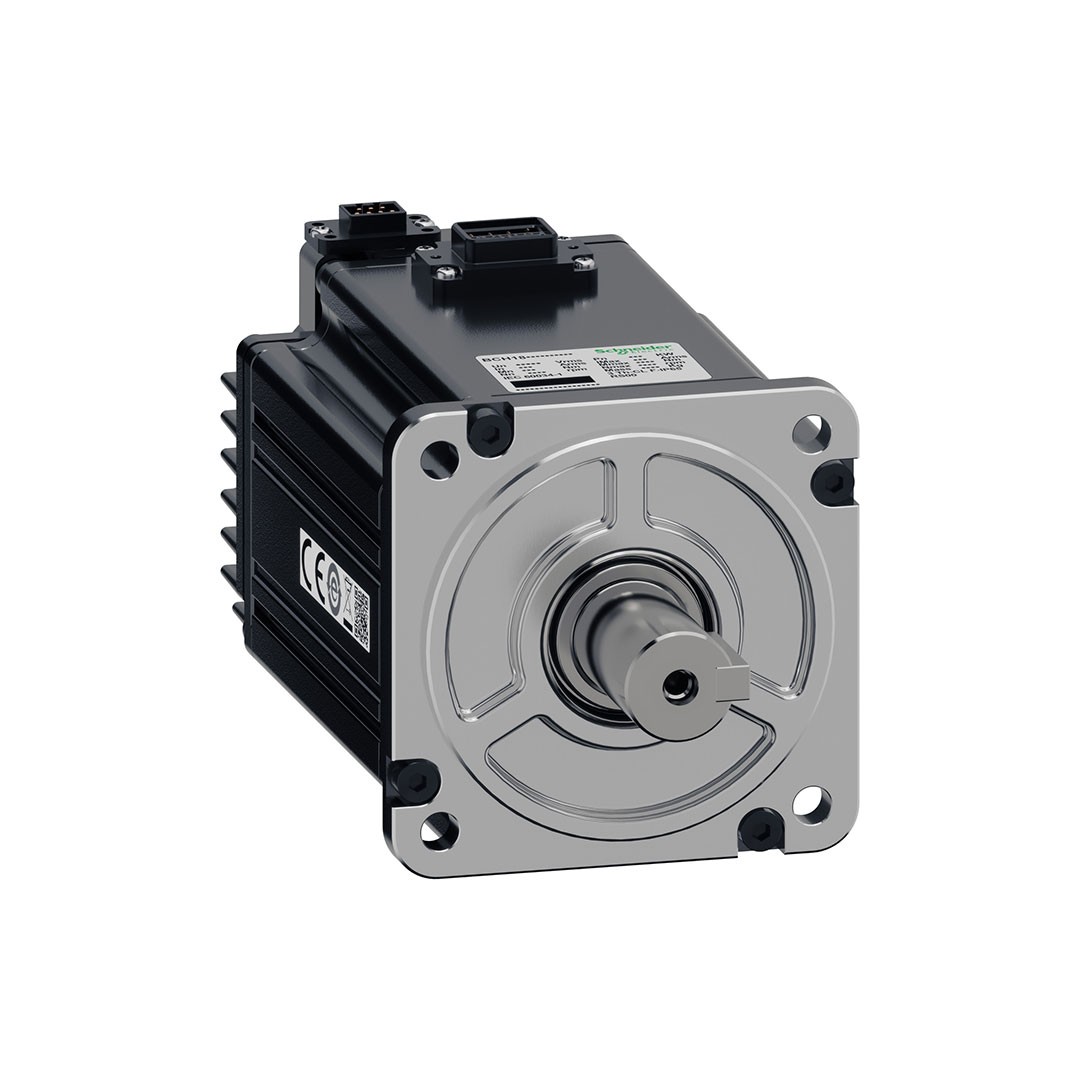

400W frenli, 14mm, medium inertia, 3000rpm, 23bit encoder

Range compatibilityEasy Lexium 18Device short name                                        BCH18Product or component typeServo motorMaximum mechanical speed                       6000.0 rpm[Us] rated supply voltage200…240 VNetwork number of phases3 phasesContinuous stall current2.6 AContinuous stall torque1.27 N.m, 220 V, single phaseContinuous power400 WPeak stall torque4.45 N.m, 220 V, single phaseNominal output power400 W, 220 V, single phaseNominal torque1.27 N.m, 220 V, single phaseNominal speed3000 rpm, 220 V, single phaseMaximum permanent current9.3 AShaft endParallel keyShaft diameter14.0 mmShaft length30.0 mmkey width5.0 mmFeedback type23 bits optic incremental encoderHolding brakeWithHolding torque3.0 N.mMounting supportAsian standard flangeMotor flange size80 mmElectrical connection2 connectors male/femaleTorque constant0.49 N.m/A at 40 °CBack emf constant35.0 V/krpm at 40 °CRotor inertia1.33 kg.cm²Maximum radial force Fr392 NMaximum axial force Fa147 NLength136.8 mmNumber of mounting holes4.0Circle diameter of the mounting holes6.5 mmwidth136.8 mmHeight80.0 mmDepth88.6 mmNet weight3.24 kgEncoder typeOptic encoder
