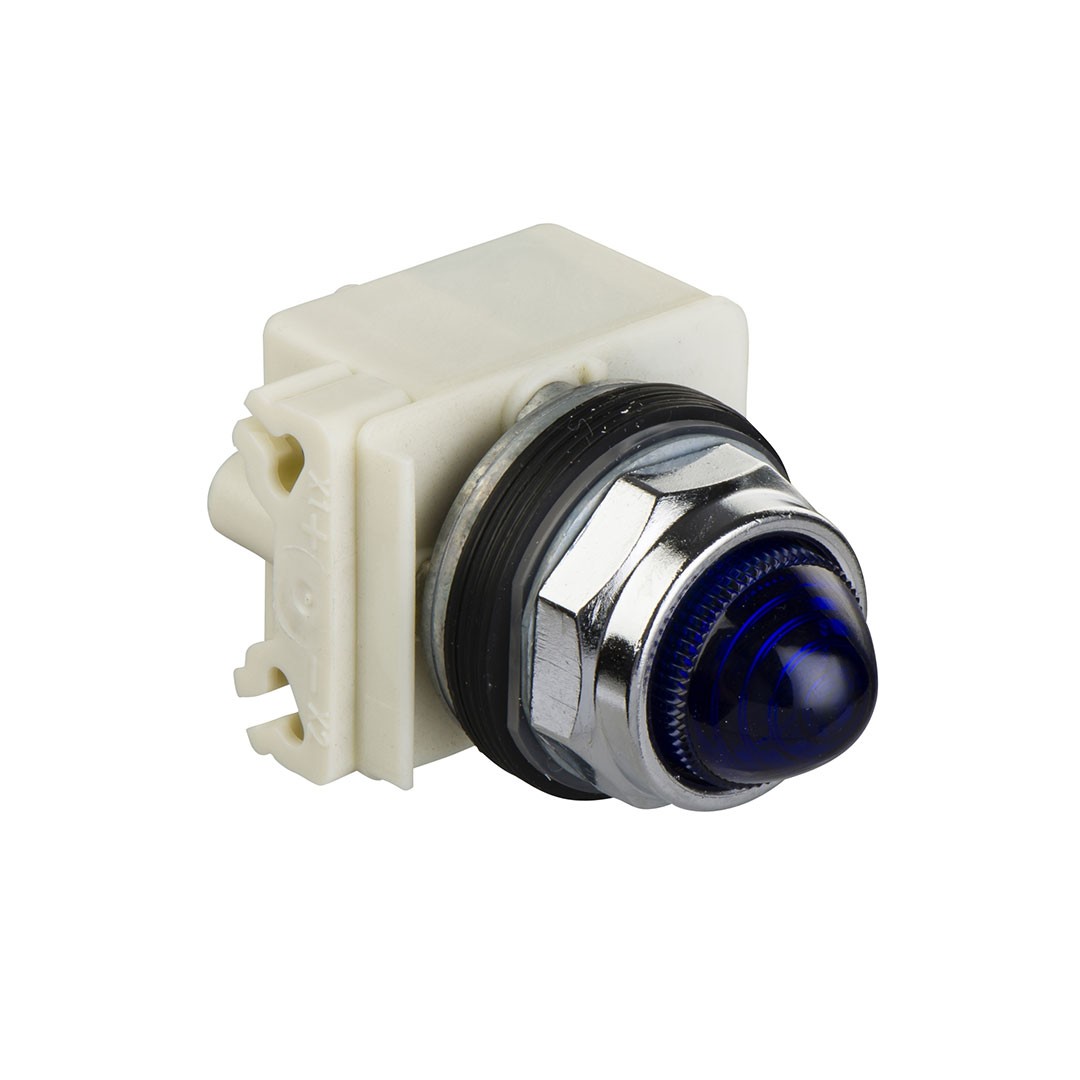

Range of ProductHarmony 9001KProduct or Component TypePilot lightDevice short name 9001KBezel materialMetalMounting diameter1.2 in (30 mm)Shape of signaling unit head RoundLens typeDomed plasticCap/operator or lens colourBlueLight sourceincandescentBulb baseBA 9sLight block supplyVia integral transformer 220…240 V AC 50/60 Hz 6 V)Connections – terminalsScrew clamp terminals, 1 x 0.22…2 x 1.5 mm² IEC 60947-1Tightening torque7.08 lbf.in (0.8 N.m) IEC 60947-1shape of screw headCross slottedShape of screw headCross slottedOperating positionAny position[Ui] rated insulation voltage250 V 2)IEC 60947-1[Uimp] rated impulse withstand voltage2.5 kV IEC 60947-1Short-circuit protection10 A cartridge fuse IEC 60947-5-1Light sourceIncandescent bulb[Ith] conventional free air thermal current10 ACAD overall width2.1 in (54 mm)CAD overall height2.8 in (70 mm)CAD overall depth1.7 in (42 mm)[Us] rated supply voltage220…240 V ACProduct Weight0.46 lb(US) (0.21 kg)Device presentationComplete productLens typeDomed[Us] rated supply voltage220…240 VLight block supplyVia integral transformerSupply frequency50…60 HzLens materialPolycarbonateSize30 mm
