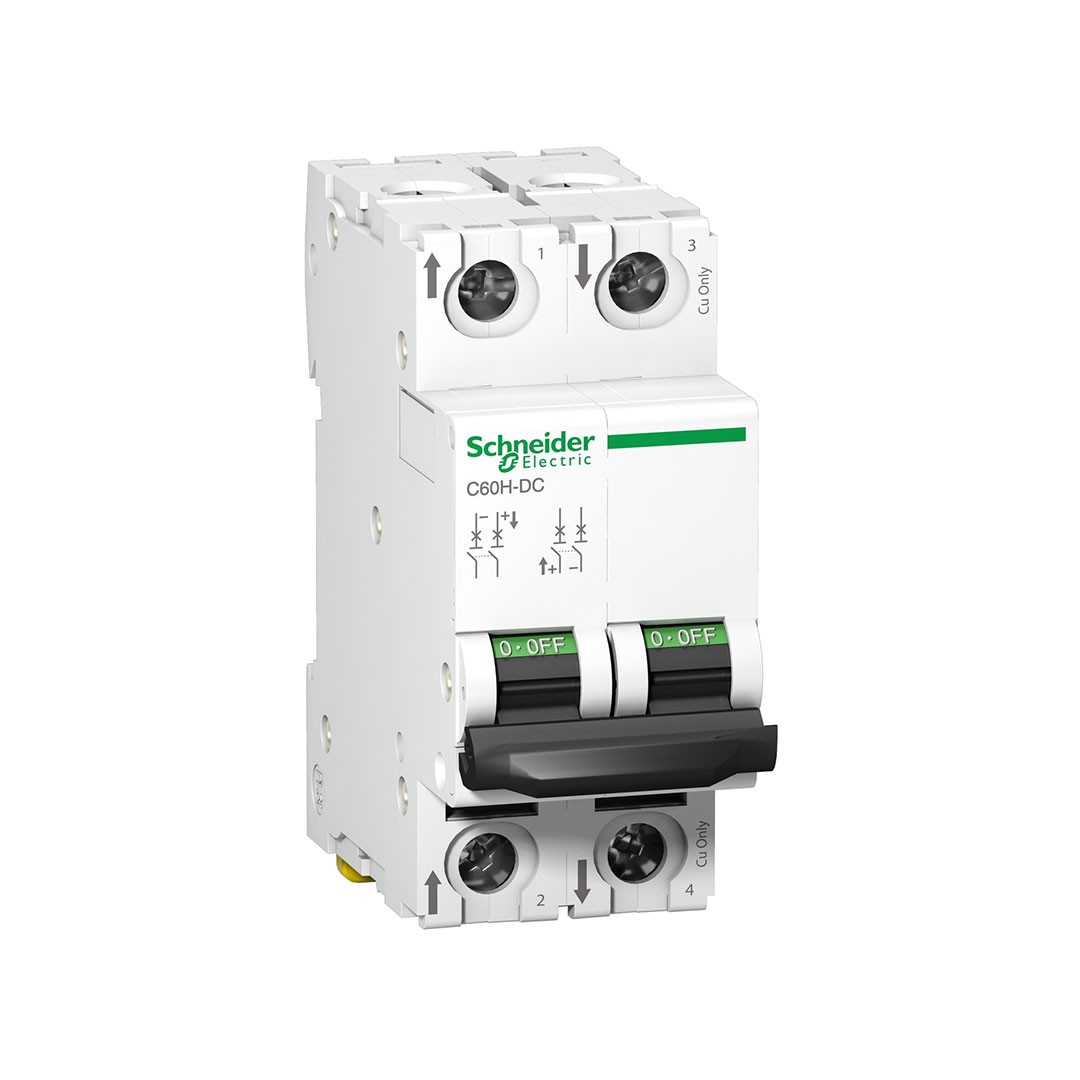

Acti9 C60H-DC 2P 0,5A, 6kA C Eğrisi Otomat

RangeActi9product nameActi9 C60H-DCProduct or component typeMiniature circuit-breakerDevice short nameC60H-DCDevice applicationDistributionPoles description2PNumber of protected poles2[In] rated current0.5 A at 25 °CNetwork typeDCTrip unit technology                                                   Thermal-magneticCurve codeCBreaking capacity10 kA Icu at 440 V DC conforming to EN 60947-210 kA Icu at 440 V DC conforming to IEC 60947-26 kA Icu at 500 V DC conforming to EN 60947-26 kA Icu at 500 V DC conforming to IEC 60947-220 kA Icu at 220 V DC conforming to GB 14048.220 kA Icu at 220 V DC conforming to IEC 60947-220 kA Icu at 250 V DC conforming to GB 14048.220 kA Icu at 250 V DC conforming to IEC 60947-2Utilisation categoryCategory A conforming to EN 60947-2Category A conforming to IEC 60947-2Suitability for isolationYes conforming to IEC 60947-2Yes conforming to EN 60947-2StandardsEN 60947-2IEC 60947-2Network frequency50/60 Hz[Ue] rated operational voltage500 V DC[Ics] rated service breaking capacity                      15 kA 75 % conforming to EN 60947-2 – 220 V DC15 kA 75 % conforming to IEC 60947-2 – 220 V DC15 kA 75 % conforming to EN 60947-2 – 250 V DC15 kA 75 % conforming to IEC 60947-2 – 250 V DC4.5 kA 75 % conforming to EN 60947-2 – 500 V DC4.5 kA 75 % conforming to IEC 60947-2 – 500 V DC7.5 kA 75 % conforming to EN 60947-2 – 440 V DC7.5 kA 75 % conforming to IEC 60947-2 – 440 V DC[Ui] rated insulation voltage500 V DC conforming to IEC 60947-2500 V DC conforming to EN 60947-2[Uimp] rated impulse withstand voltage6 kV conforming to EN 60947-26 kV conforming to IEC 60947-2Contact position indicatorYescontrol typeToggleLocal signallingON/OFF indicationMounting modeFixedMounting support35 mm symmetrical DIN railComb busbar and distribution block compatibilityTop or bottom: standard9 mm pitches4Net weight0.256 kgColourWhiteMechanical durability20000 cyclesElectrical durability3000 cycles L/R = 2 msProvision for padlockingPadlockableLocking options descriptionIn position OTightening torquePower circuit: 2.5 N.m top or bottomEarth-leakage protectionWithout
