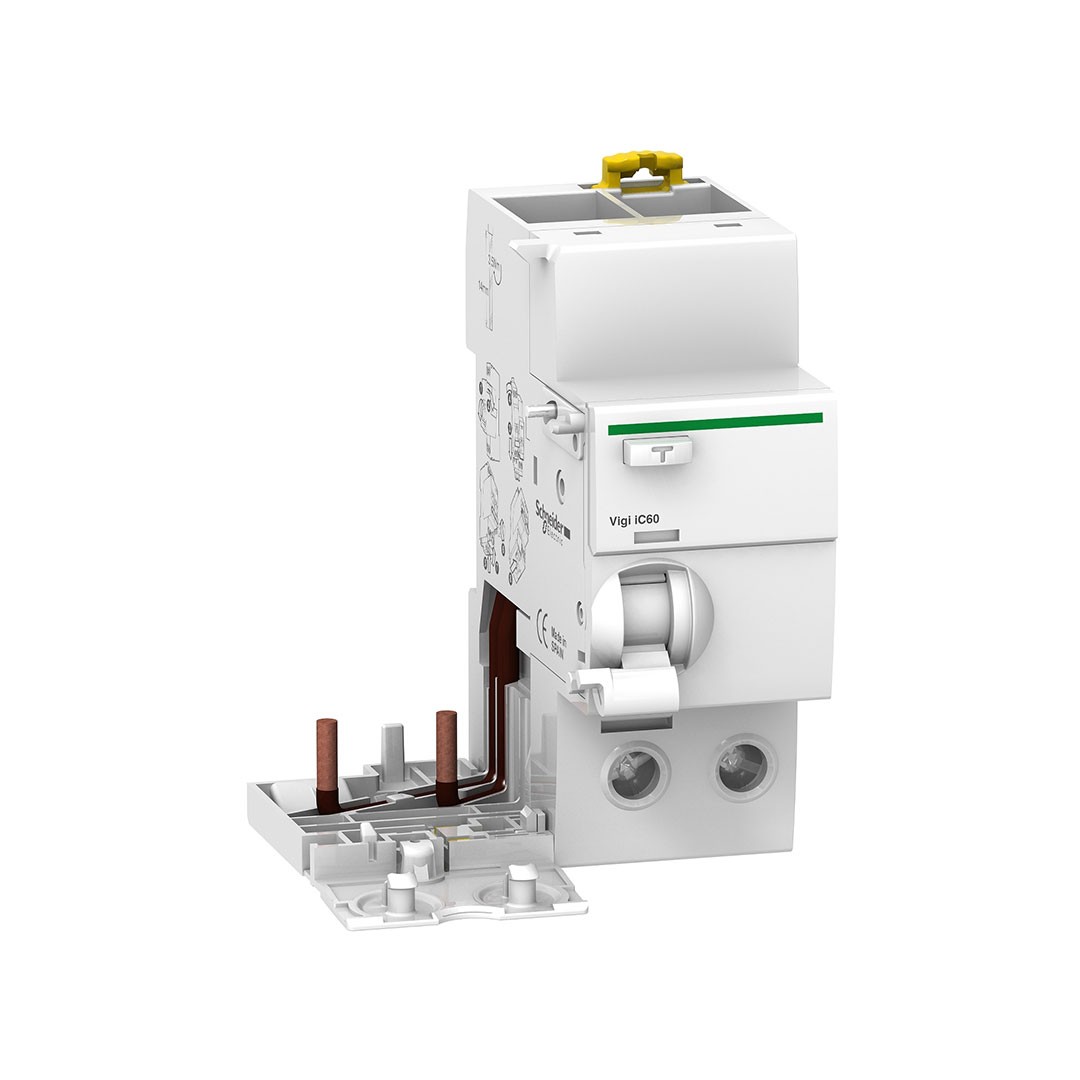

RangeActi9product nameActi9 Vigi iC60Product or component type Add-on residual current deviceDevice short nameVigi iC60Poles description2P[In] rated current63 AEarth-leakage sensitivity30 mAEarth-leakage protection time delayInstantaneousEarth leakage protection typeType A-SI (Super Immunised)Network typeACNetwork frequency50/60 Hz[Ue] rated operational voltage230…240 V AC 50/60 Hz conforming to EN/IEC 61009-1230…240 V AC 50/60 Hz conforming to EN/IEC 61009-2-1StandardsEN/IEC 61009-1EN/IEC 61009-2-19 mm pitches4Device location in systemOutgoerResidual current tripping technology Voltage independent[Ui] rated insulation voltage500 V AC 50/60 Hz conforming to IEC 60947-2[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947-2Range compatibilityActi 9 Acti9 iC60Acti 9 Acti9 Reflex iC60Product compatibilitySingle terminalLocal signallingTrip indicatorMounting modeClip-onMounting supportDIN railElectrical connection to mcbBy screwsComb busbar and distribution block compatibilityBottom: YESHeight91 mmWidth72 mmDepth73.5 mmNet weight0.165 kgConnections – terminalsTunnel type terminal downside for 1 cable(s) 1…35 mm² rigid without cable endTunnel type terminal downside for 1 cable(s) 1…25 mm² flexible without cable endTunnel type terminal downside for 1 cable(s) 1…25 mm² flexible with cable endWire stripping length14 mm for bottom connectionTightening torque3.5 N.m bottom
