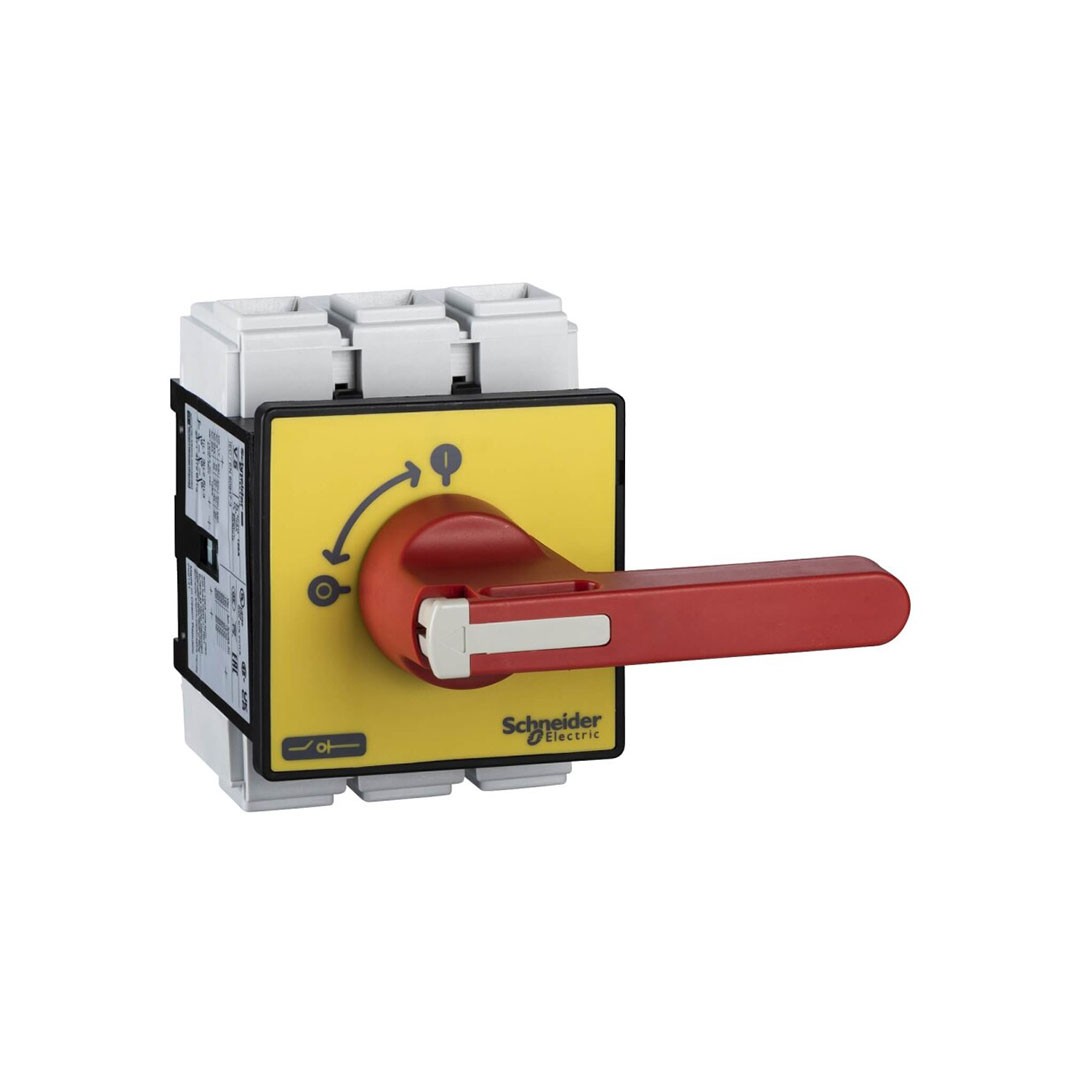

Range:TeSysProduct Name:TeSys VARIODevice Short Name:VCFProduct Type:Acil durdurma yük ayırıcısıTamamlayıcı ÖzelliklerDevice Composition:AnahtarKolMounting Support:Kol: kapıAnahtar: kapıMounting Method:4 vidayla için kolPerformance Level:Yüksek performansNumber of Poles:3PContact Type and Composition:3 NA[Ue] IEC Rated Operational Voltage:690 V AC 50/60 HzIEC Rated Operational Power in W:22 kW -de 230…240 V (AC-3)30 kW -de 400…415 V (AC-3)30 kW -de 690 V (AC-3)37 kW -de 500 V (AC-3)37 kW -de 690 V (AC-23A)45 kW -de 500 V (AC-23A)22 kW -de 230…240 V (AC-23A)37 kW -de 400…415 V (AC-23A)[Ie] Rated Operational Current:68,5 A AC-23 Ue: 400 V[Ith] Conventional Free Air Thermal Current:125 A[Ithe] Conventional Enclosed Thermal Current:100 AMaking Capacity ( I Rms):1250 A -de 400 V AC-21A1250 A -de 400 V AC-22A1250 A -de 400 V AC-23ABreaking Capacity:1000 A -de 400 V (AC-21A)1000 A -de 400 V (AC-22A)1000 A -de 400 V (AC-23A)Rated Conditional Short Circuit Current:10 kA -de 400 V – ilgili sigorta 125 A aM10 kA -de 400 V – ilgili sigorta 125 A gG[Icm] Rated Short Circuit Making Capacity:2,8 kA -de 400 V Itepe’de[Icw] Rated Short Time Withstand Current:1500 A -de 400 V 1 s[Uimp] Rated Impulse Withstand Voltage:8 kVSuitability for Isolation:EvetNetwork Type:ACDCIntermittent Duty Class:30Control Type:Döner kolRotary Handle Mounting Style:DoğrudanHandle Color:KırmızıHandle Front Plate Color:SarıRotary Handle Padlocking:1 ila 3 asmalı kilit 4…8 mmMarking:0 – 1Mechanical Durability:30000 cyclesElectrical Durability:30000 cycles AC-2130000 cycles DC-1…5IEC Terminal Connection:Güç devresi: vida kelepçesi terminalleri kablo 95 mm² – kablo sertligi: katıGüç devresi: vida kelepçesi terminalleri kablo 70 mm² – kablo sertligi: esnek – Kablo uçluTightening Torque:Güç devresi: 22,6 N.m – üzerinde vida kelepçesi terminalleriBase Dimension:90 x 90 mmHeight:125 mmWidth:90 mmProduct Weight:1,2 kg
