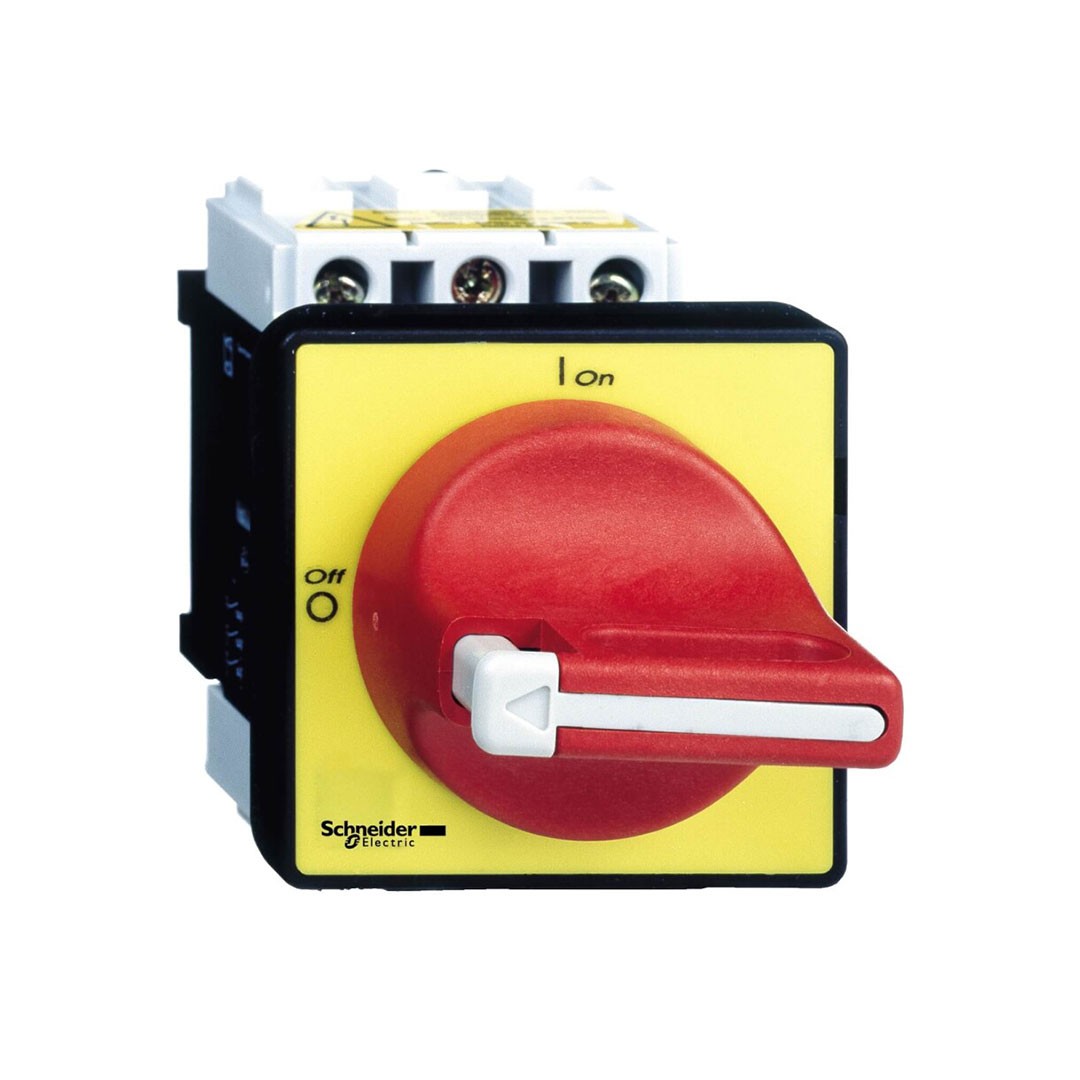

TeSys VARIO Acil Dur Yük Ayırıcı 40A

Range:TeSysProduct Name:TeSys VARIODevice Short Name:VCFProduct Type:Acil durdurma yük ayırıcısıTamamlayıcı ÖzelliklerDevice Composition:AnahtarKolMounting Support:Kol: kapıAnahtar: kapıMounting Method:4 vidayla için kolPerformance Level:Yüksek performansNumber of Poles:3PContact Type and Composition:3 NA[Ue] IEC Rated Operational Voltage:690 V AC 50/60 HzIEC Rated Operational Power in W:11 kW -de 690 V (AC-3)15 kW -de 690 V (AC-23A)11 kW -de 400…415 V (AC-3)15 kW -de 500 V (AC-3)18,5 kW -de 500 V (AC-23A)5,5 kW -de 230…240 V (AC-3)7,5 kW -de 230…240 V (AC-23A)15 kW -de 400…415 V (AC-23A)[Ie] Rated Operational Current:29 A AC-23 Ue: 400 V[Ith] Conventional Free Air Thermal Current:40 A[Ithe] Conventional Enclosed Thermal Current:32 AMaking Capacity ( I Rms):400 A -de 400 V AC-21A400 A -de 400 V AC-22A400 A -de 400 V AC-23ABreaking Capacity:320 A -de 400 V (AC-21A)320 A -de 400 V (AC-22A)320 A -de 400 V (AC-23A)Rated Conditional Short Circuit Current:10 kA -de 400 V – ilgili sigorta 50 A aM10 kA -de 400 V – ilgili sigorta 50 A gG[Icm] Rated Short Circuit Making Capacity:1 kA -de 400 V Itepe’de[Icw] Rated Short Time Withstand Current:480 A -de 400 V 1 s[Uimp] Rated Impulse Withstand Voltage:8 kVSuitability for Isolation:EvetNetwork Type:ACDCIntermittent Duty Class:30Control Type:Döner kolRotary Handle Mounting Style:DoğrudanHandle Color:KırmızıHandle Front Plate Color:SarıRotary Handle Padlocking:1 ila 3 asmalı kilit 4…8 mmMarking:0 – 1Mechanical Durability:100000 cyclesElectrical Durability:100000 cycles AC-2130000 cycles DC-1…5IEC Terminal Connection:Güç devresi: vida kelepçesi terminalleri kablo 10 mm² – kablo sertligi: katıGüç devresi: vida kelepçesi terminalleri kablo 6 mm² – kablo sertligi: esnek – Kablo uçluTightening Torque:Güç devresi: 2,1 N.m – üzerinde vida kelepçesi terminalleriBase Dimension:60 x 60 mmHeight:74 mmWidth:60 mmProduct Weight:0,25 kg
