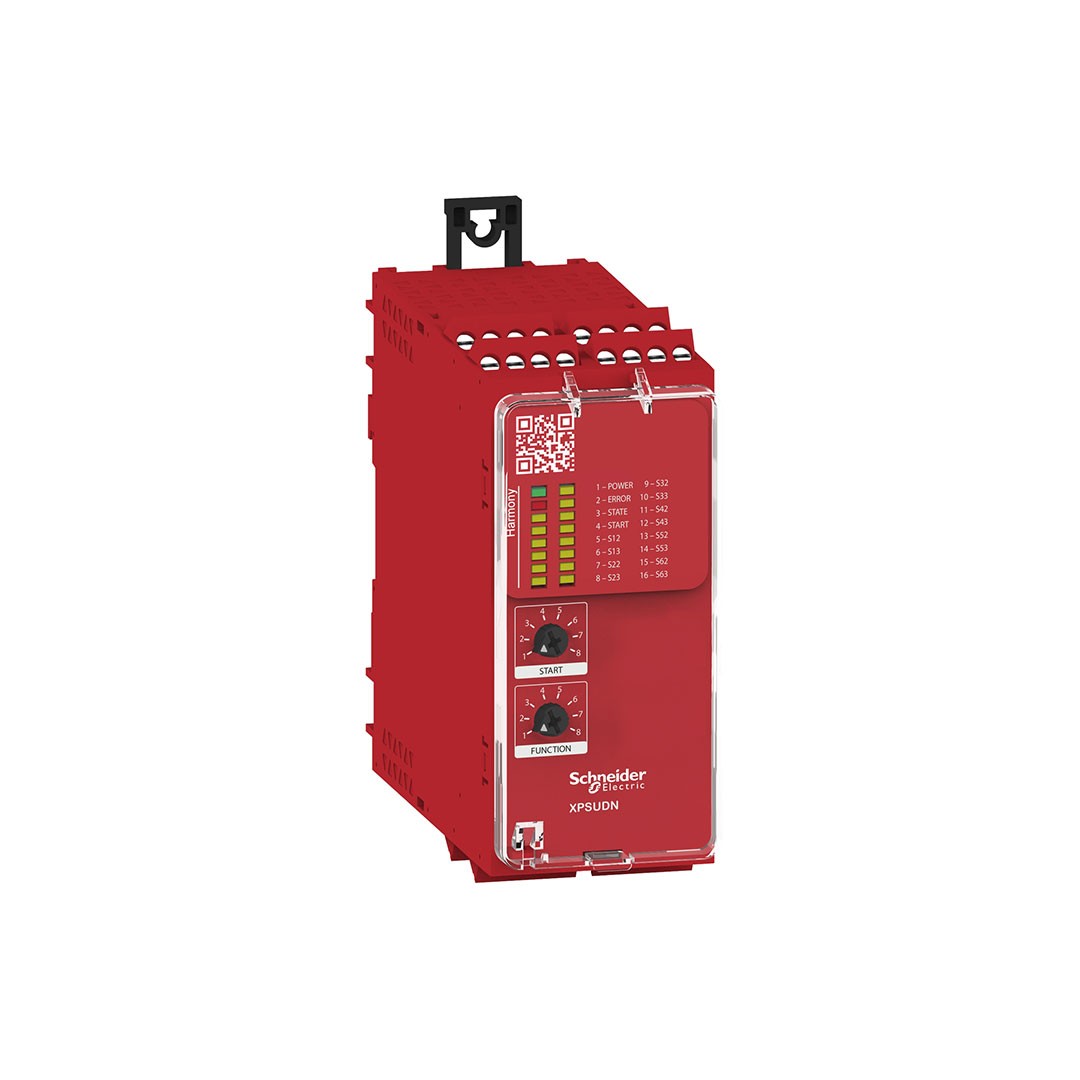

Range of ProductHarmony Safety AutomationProduct or Component TypeSafety moduleSafety module nameXPSUDNSafety module application Monitoring antivalent contactsFor emergency stop, guard and light curtain monitoringFunction of moduleEmergency stop button with 2 NC contactsGuard monitoring with 1 or 2 limit switchesMonitoring 2 PNP sensorsMagnetic switch monitoringLight curtain monitoringRFID switchMonitoring of electro-sensitive protection equipment (ESPE)Proximity sensor monitoringSafety levelCan reach PL e/category 4 for normally open relay contact ISO 13849-1Can reach SILCL 3 for normally open relay contact IEC 62061Can reach SIL 3 for normally open relay contact IEC 61508Can reach PL c/category 1 for normally closed relay contact ISO 13849-1Can reach SILCL 1 for normally closed relay contact IEC 62061Can reach SIL 1 for normally closed relay contact IEC 61508Safety reliability dataMTTFd > 30 years ISO 13849-1Dcavg >= 99 % ISO 13849-1PFHd = 1.36E-09 ISO 13849-1HFT = 1 IEC 62061PFHd = 1.36E-09 IEC 62061SFF > 99% IEC 62061HFT = 1 IEC 61508-1PFHd = 1.36E-09 IEC 61508-1SFF > 99% IEC 61508-1Type = B IEC 61508-1Electrical circuit typeNC pairPNP pairAntivalent pairOSSD pairConnections – terminalsRemovable screw terminal block, 0.2…2.5 mm² solid or flexibleRemovable screw terminal block, 0.25…2.5 mm² flexible with ferrule single conductorRemovable screw terminal block, 0.2…1.5 mm² solid or flexible twin conductorRemovable screw terminal block, 2 x 0.25…1 mm² flexible with ferrule without cable end, with bezelRemovable screw terminal block, 2 x 0.5…1.5 mm² flexible with ferrule with cable end, with bezel[Us] Rated Supply Voltage 48…240 V AC/DC – 10…10 %Synchronisation time between inputs 0.5 s2 s2.2 s4 sType of startAutomatic/manual/monitoredPower consumption in W6 W 48 V DCPower consumption in VA25 VA 240 V AC 50/60 HzInput protection typeInternal, electronicsafety outputs3 NO + 1 NCsafety inputs6 safety input 24 V DC 5 mAmaximum wire resistance500 OhmInput compatibilityNormally closed circuit ISO 14119XC limit switch ISO 14119Mechanical contact ISO 14119Normally closed circuit ISO 13850Antivalent pair ISO 14119OSSD pair IEC 61496-1-23-wire proximity sensors PNP[Ie] rated operational current5 A AC-1 for normally open relay contact3 A AC-15 for normally open relay contact5 A DC-1 for normally open relay contact3 A DC-13 for normally open relay contact3 A AC-1 for normally closed relay contact1 A AC-15 for normally closed relay contact3 A DC-1 for normally closed relay contact1 A DC-13 for normally closed relay contactcontrol outputs7 on/off configurable pulsed outputInput/output typeSemiconductor pulsed diagnostic output 24 V DC, 20 mA Z1, not safety-related[Ith] conventional free air thermal current16 AAssociated fuse rating10 A gG NO relay output circuit IEC 60947-14 A gG NC relay output circuit IEC 60947-1Minimum output current10 mA relay outputMinimum output voltage12 V relay outputMaximum response time on input open20 ms[Ui] rated insulation voltage250 V 2)IEC 60947-1[Uimp] rated impulse withstand voltage4 kV II IEC 60947-1Local signallingfor power ON LED (green)for error LED (red)for start LED (yellow)for safety status LED (yellow)for safety input S12 LED (yellow)for safety input S13 LED (yellow)for safety input S22 LED (yellow)for safety input S23 LED (yellow)for safety input S32 LED (yellow)for safety input S33 LED (yellow)for safety input S42 LED (yellow)for safety input S43 LED (yellow)for safety input S52 LED (yellow)for safety input S53 LED (yellow)for safety input S62 LED (yellow)for safety input S73 LED (yellow)Mounting Support35 mm symmetrical DIN railDepth4.7 in (120 mm)Height3.9 in (100 mm)Width1.8 in (45 mm)Net Weight0.772 lb(US) (0.350 kg)
