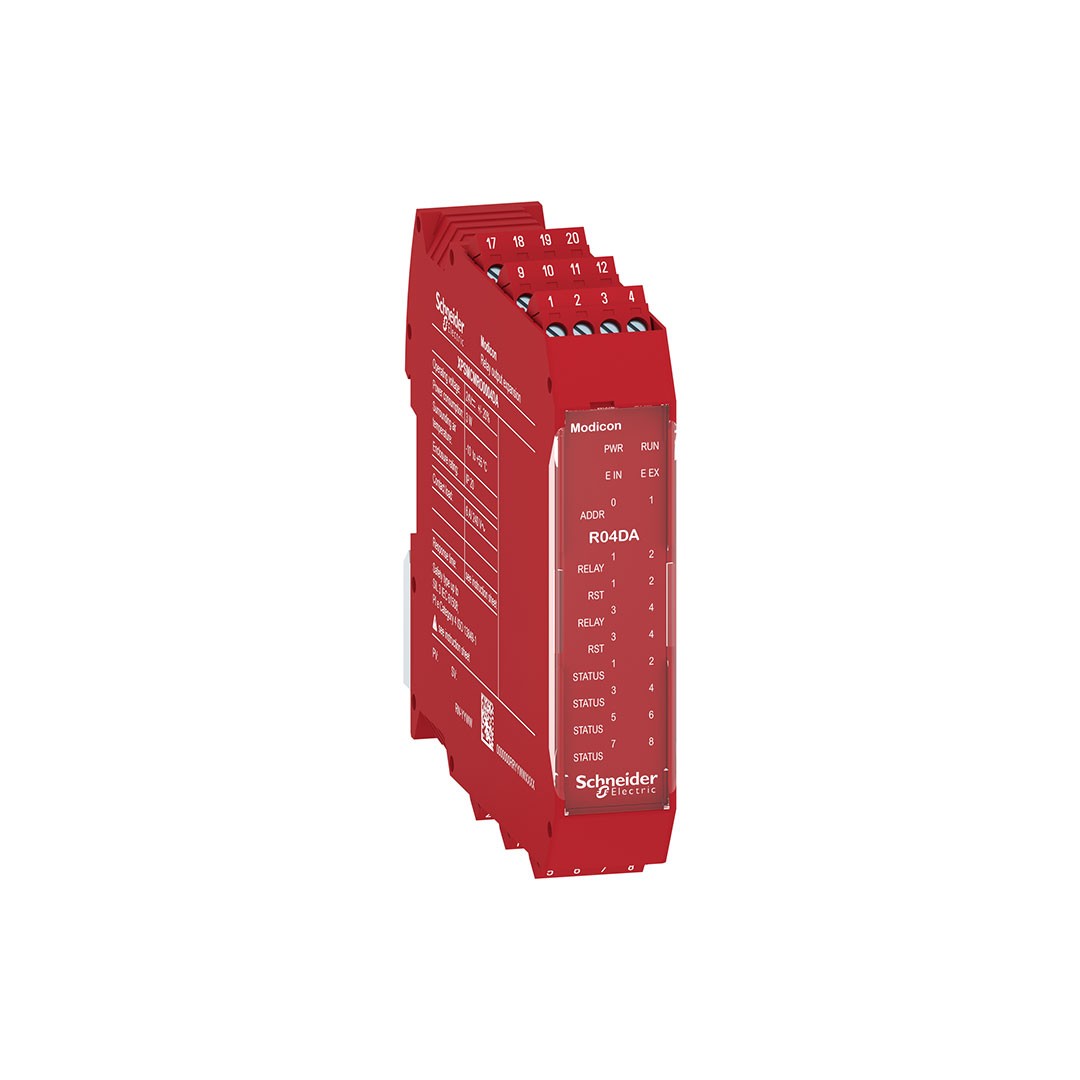

Range of ProductPreventa Safety automationProduct or Component TypeSafe relay output moduleDevice short nameXPSMCMElectrical ConnectionScrew terminal[Us] rated supply voltage24 V – 20…20 % DCNumber of Outputs4 relayDiscrete output number 8 solid state 125 mA diagnostics)Function of moduleMonitoring safety actuators relay outputMaximum power dissipation in W3 WIntegrated connection type Backplane expansion busSwitching voltage10 V DCAssociated fuse rating3.5 A, slow-blowSafety levelCan reach category 4 ISO 13849-1Can reach PL = e ISO 13849-1Can reach SIL 3 IEC 61508SILCL 3 IEC 62061Quality labelsCEOutput typeRelay, 4 NO, volt-freeQuantity per Set1Switching time12 msMaximum switching voltage400 V AC250 V DCMinimum switching current20 mAMaximum switching current6 ANumber of terminal blocks6Local signalling1 LED green PWR power ON1 LED green RUN RUN (status)1 LED red E IN internal error1 LED red E EX external error2 LEDs orange ADDR node address4 LEDs green/red RELAY K1…K4 relay contact4 LEDs yellow RST requires reset8 LEDs yellow STATUS diagnostics outputConnections – terminals2 captive screw clamp terminals, removable terminal block1 captive screw clamp terminals, removable terminal blockCable cross section0.0003…0.002 in² (0.2…1.5 mm²) – AWG 24…AWG 16 flexible without cable end0.0003…0.004 in² (0.2…2.5 mm²) – AWG 24…AWG 14 flexible without cable end0.0004…0.002 in² (0.25…1 mm²) – AWG 23…AWG 18 flexible with cable end, without bezel0.0004…0.004 in² (0.25…2.5 mm²) – AWG 23…AWG 14 flexible with cable end, with bezel0.0004…0.004 in² (0.25…2.5 mm²) – AWG 23…AWG 14 flexible with cable end, without bezel0.0008…0.002 in² (0.5…1.5 mm²) – AWG 20…AWG 16 flexible with cable end, with double bezel0.0003…0.002 in² (0.2…1 mm²) – AWG 24…AWG 18 solid without cable end0.0003…0.004 in² (0.2…2.5 mm²) – AWG 24…AWG 14 solid without cable endMounting supportOmega 35 mm DIN rail EN 50022Width0.9 in (22.5 mm)Height3.9 in (99 mm)Depth4.5 in (114.5 mm)Net Weight0.73 lb(US) (0.33 kg)
