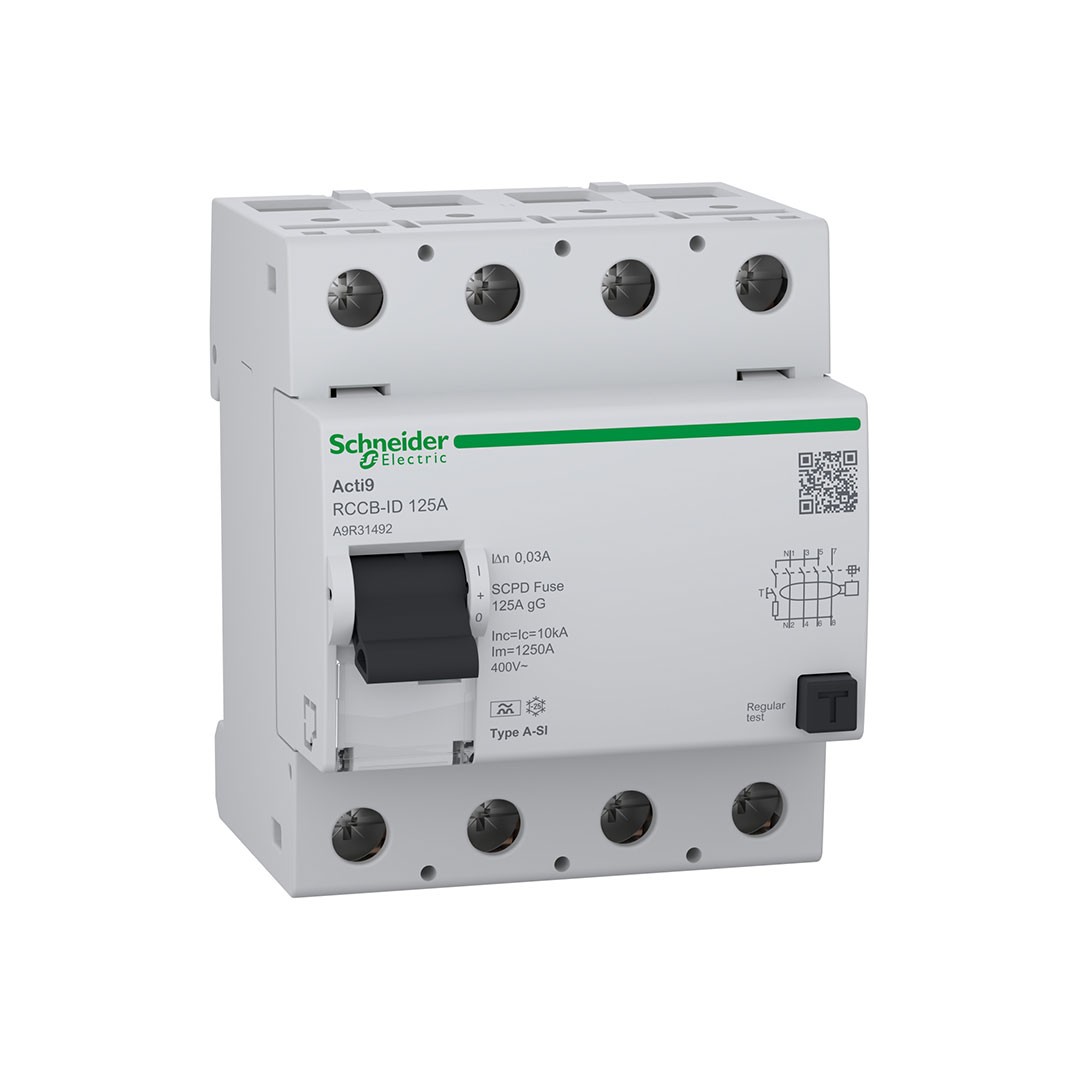

RangeActi9product nameActi9 RCCB-IDProduct or component typeResidual current circuit breaker (RCCB)Device short name RCCB-IDPoles description4PNeutral positionLeft[In] rated current125 Anetwork typeACEarth-leakage sensitivity30 mAEarth-leakage protection time delayInstantaneousEarth-leakage protection classType A-SI (Super Immunised)Rated breaking and making capacityIm = 1250 A 400 V conforming to IEC/EN 61008-1Im = 1250 A 230 V conforming to IEC/EN 61008-2-1Rated conditional short-circuit currentInc 10 kA 125 ADevice location in systemOutgoerNetwork frequency50 Hz[Ue] rated operational voltage 400 V AC 50 Hz conforming to IEC/EN 61008-1400 V AC 50 Hz conforming to IEC/EN 61008-2-1Residual current tripping technologyVoltage independent[Ui] rated insulation voltage400 V AC 50 Hz conforming to IEC/EN 61008-1400 V AC 50 Hz conforming to IEC/EN 61008-2-1[Uimp] rated impulse withstand voltage4 kV conforming to IEC/EN 61008-14 kV conforming to IEC/EN 61008-2-1Contact position indicatorYesControl typeToggleLocal signallingRed/green indicatorTrip indicatorMounting modeFixedMounting support35 mm symmetrical DIN railConnection pitch18 mm between phases9 mm pitches8Height86 mmWidth72 mmDepth76 mmProduct weight420 gColourGreyMechanical durability5000 cyclesElectrical durability2000 cyclesProvision for padlockingPadlockableConnections – terminalsTunnel type terminals2 cable(s) 1.5…16 mm² flexibleTunnel type terminals2 cable(s) 1.5…16 mm² rigidTunnel type terminals1 cable(s) 1.5…50 mm² rigidTunnel type terminals1 cable(s) 1.5…35 mm² flexibleTunnel type terminals1 cable(s) 1.5…35 mm² flexible with ferruleTunnel type terminals2 cable(s) 1.5…16 mm² flexible with ferruleWire stripping length11 mmTightening torque3 N.m
