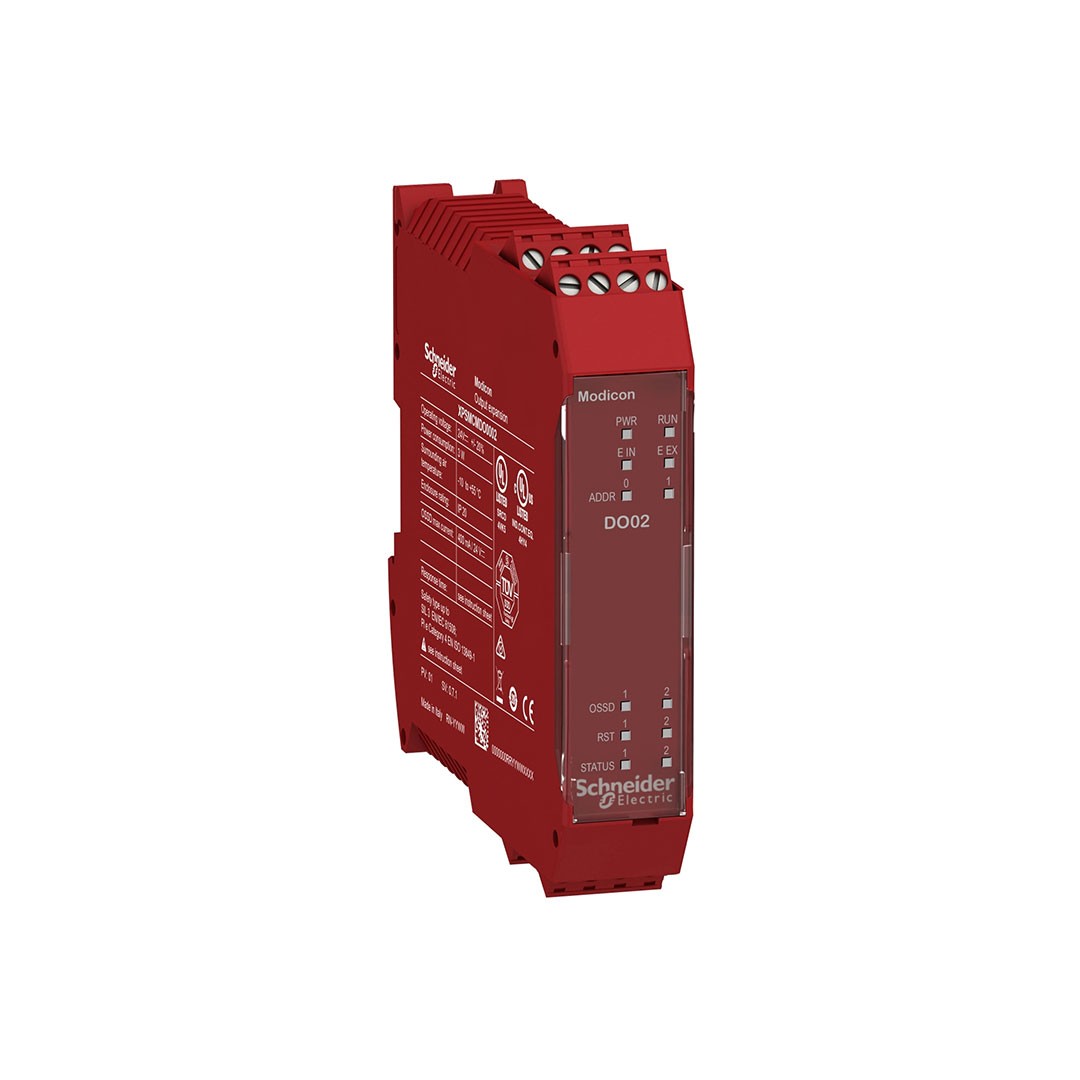

Schneider XPSMCMDO0002 24 V dc 2 Girişli 4 Çıkışlı Çıkış Modülü

Range of ProductPreventa Safety automationProduct or Component TypeSafe output expansion moduleDevice short nameXPSMCMElectrical ConnectionScrew terminal[Us] rated supply voltage                                24 V – 20…20 % DCInput type2 digital external device monitoringOutput type2 safety outputs OSSD contactor/drive connection2 configurable diagnostic connectionDiscrete input typeIsolatedDiscrete output typePNPFunction of moduleMonitoring safety actuators discrete outputPower Consumption in W                                3 WPower dissipation in W3 WIntegrated connection typeBackplane expansion busNumber of terminal blocks4Connections – terminals2 captive screw clamp terminals, removable terminal block1 captive screw clamp terminals, removable terminal blockLoad typeResistive loadGroup of channels2 dual channel load 400mA/outputSafety levelCan reach category 4 ISO 13849-1Can reach PL = e ISO 13849-1Can reach SIL 3 IEC 61508SILCL 3 IEC 62061Quality labelsCEDiscrete input voltage24 V DCDiscrete output voltage24 V DCDiscrete output current400 mA100 mAOutput load60 OhmLocal signalling1 LED green PWR power ON1 LED green RUN RUN (status)1 LED red E IN internal error1 LED red E EX external error2 LEDs orange ADDR node address2 LEDs green/red OUT output status2 LEDs yellow RST restart signal2 LEDs yellow STATUS output statusCable cross section0.0003…0.002 in² (0.2…1.5 mm²) – AWG 24…AWG 16 flexible without cable end0.0003…0.004 in² (0.2…2.5 mm²) – AWG 24…AWG 14 flexible without cable end0.0004…0.002 in² (0.25…1 mm²) – AWG 23…AWG 18 flexible with cable end, without bezel0.0004…0.004 in² (0.25…2.5 mm²) – AWG 23…AWG 14 flexible with cable end, with bezel0.0004…0.004 in² (0.25…2.5 mm²) – AWG 23…AWG 14 flexible with cable end, without bezel0.0008…0.002 in² (0.5…1.5 mm²) – AWG 20…AWG 16 flexible with cable end, with double bezel0.0003…0.002 in² (0.2…1 mm²) – AWG 24…AWG 18 solid without cable end0.0003…0.004 in² (0.2…2.5 mm²) – AWG 24…AWG 14 solid without cable endMounting supportOmega 35 mm DIN rail EN 50022Depth0.9 in (22.5 mm)Height3.9 in (99 mm)Width4.5 in (114.5 mm)Net Weight0.51 lb(US) (0.23 kg)
