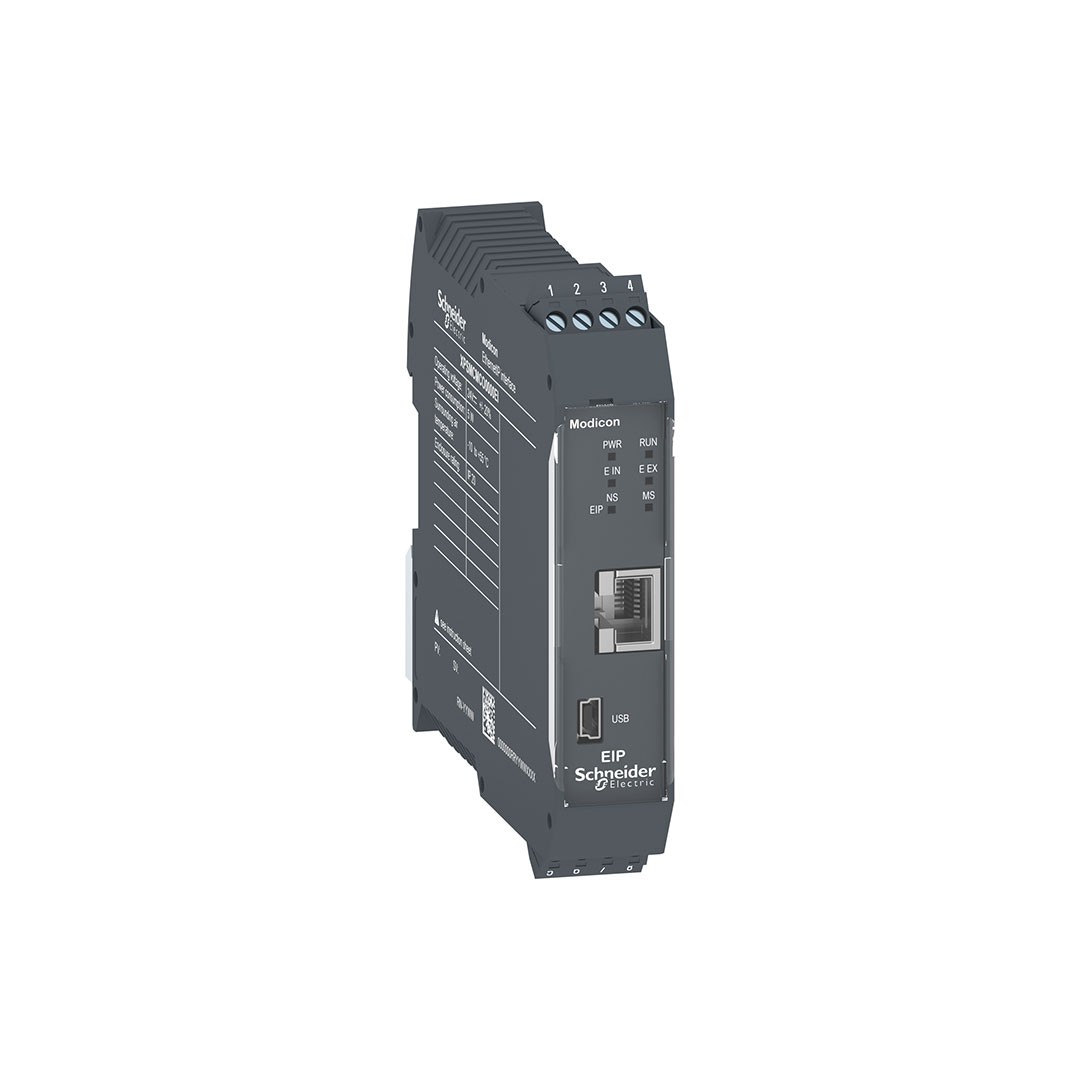

Schneider XPSMCMCO0000EI Ethernet/IP Diagnostic Expansion Module

Range of ProductModicon MCMProduct or Component TypeNon-safe communication moduleDevice short name                                                XPSMCM[Us] rated supply voltage24 V – 20…20 % DCPower dissipation in W                                         3 WQuality labelsCERange CompatibilityPreventa XPSMCMConnector typeRJ45Number of port1Method of accessServerTransmission rate10/100 Mbit/sCommunication Port ProtocolEthernet TCP/IPCurrent Consumption0.125 mAMaximum cable distance between devices328.08 ft (100 m)Local signallingLED green PWR power ONLED green RUN operatingLED red E IN internal errorLED red E EX external errorLED green/red NET connection stateLED green/red STS communication statusConnections – terminals2 captive screw clamp terminals, removable terminal blockCable cross section0.0003…0.002 in² (0.2…1.5 mm²) – AWG 24…AWG 16 flexible without cable end0.0003…0.004 in² (0.2…2.5 mm²) – AWG 24…AWG 14 flexible without cable end0.0004…0.002 in² (0.25…1 mm²) – AWG 23…AWG 18 flexible with cable end, without bezel0.0004…0.004 in² (0.25…2.5 mm²) – AWG 23…AWG 14 flexible with cable end, with bezel0.0004…0.004 in² (0.25…2.5 mm²) – AWG 23…AWG 14 flexible with cable end, without bezel0.0008…0.002 in² (0.5…1.5 mm²) – AWG 20…AWG 16 flexible with cable end, with double bezel0.0003…0.002 in² (0.2…1 mm²) – AWG 24…AWG 18 solid without cable end0.0003…0.004 in² (0.2…2.5 mm²) – AWG 24…AWG 14 solid without cable endMounting supportOmega 35 mm DIN rail EN 50022Width0.9 in (22.5 mm)Height3.9 in (99 mm)Depth4.5 in (114.5 mm)Net Weight0.7 lb(US) (0.3 kg)
