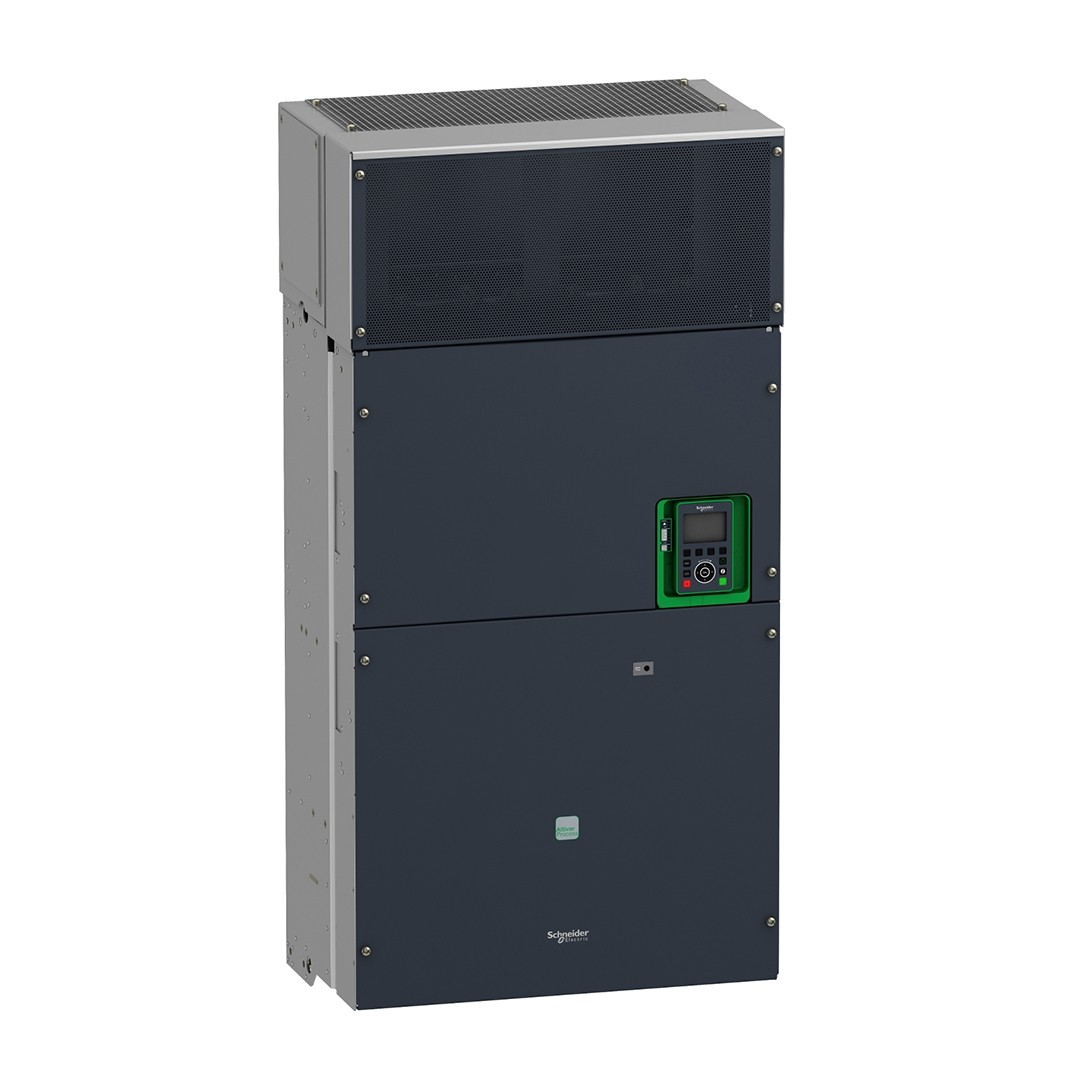

ATVProcess :VARIABLE SPEED DRIVE IP21 250 KW 400V/480V W/O brake unit

range of productAltivar Process ATV900product or component typeVariable speed drivedevice applicationIndustrial applicationdevice short nameATV930variantStandard versionWithout braking chopperproduct destinationSynchronous motorsAsynchronous motorsEMC filterIntegrated with 50 m conforming to EN/IEC 61800-3 category C3IP degree of protectionIP00 conforming to IEC 61800-5-1IP00 conforming to IEC 60529IP21 conforming to IEC 61800-5-1 with kit VW3A9113 without braking unitIP21 conforming to IEC 60529 with kit VW3A9113 without braking unitIP21 conforming to IEC 61800-5-1 with kit VW3A9114 with braking unitIP21 conforming to IEC 60529 with kit VW3A9114 with braking unittype of coolingForced convectionsupply frequency50…60 Hz +/- 5 %network number of phases3 phases[Us] rated supply voltage380…480 V – 15…10 %motor power kW250 kW (normal duty)200 kW (heavy duty)motor power hp400 hp normal duty300 hp heavy dutyline current451 A at 380 V (normal duty)366 A at 480 V (normal duty)365 A at 380 V (heavy duty)301 A at 480 V (heavy duty)prospective line Isc50 kAapparent power279 kVA at 480 V (normal duty)229 kVA at 480 V (heavy duty)continuous output current481 A at 2.5 kHz for normal duty387 A at 2.5 kHz for heavy dutymaximum transient current577 A during 60 s (normal duty)581 A during 60 s (heavy duty)asynchronous motor control profileVariable torque standardConstant torque standardOptimized torque modesynchronous motor control profilePermanent magnet motorSynchronous reluctance motorspeed drive output frequency0.1…599 Hznominal switching frequency2.5 kHzswitching frequency1…8 kHz adjustable2.5…8 kHz with derating factorsafety functionSTO (safe torque off) SIL 3number of preset speeds16 preset speedscommunication port protocolModbus serialEthernet/IPModbus TCPoption moduleSlot A: communication module for Profibus DP V1Slot A: communication module for ProfinetSlot A: communication module for DeviceNetSlot A: communication module for EtherCATSlot A: communication module for CANopen daisy chain RJ45Slot A: communication module for CANopen SUB-D 9Slot A: communication module for CANopen screw terminalsSlot A/slot B/slot C: digital and analog I/O extension moduleSlot A/slot B/slot C: output relay extension moduleSlot B: 5/12 V digital encoder interface moduleSlot B: analog encoder interface moduleSlot B: resolver encoder interface modulecommunication module for Ethernet Powerlink
