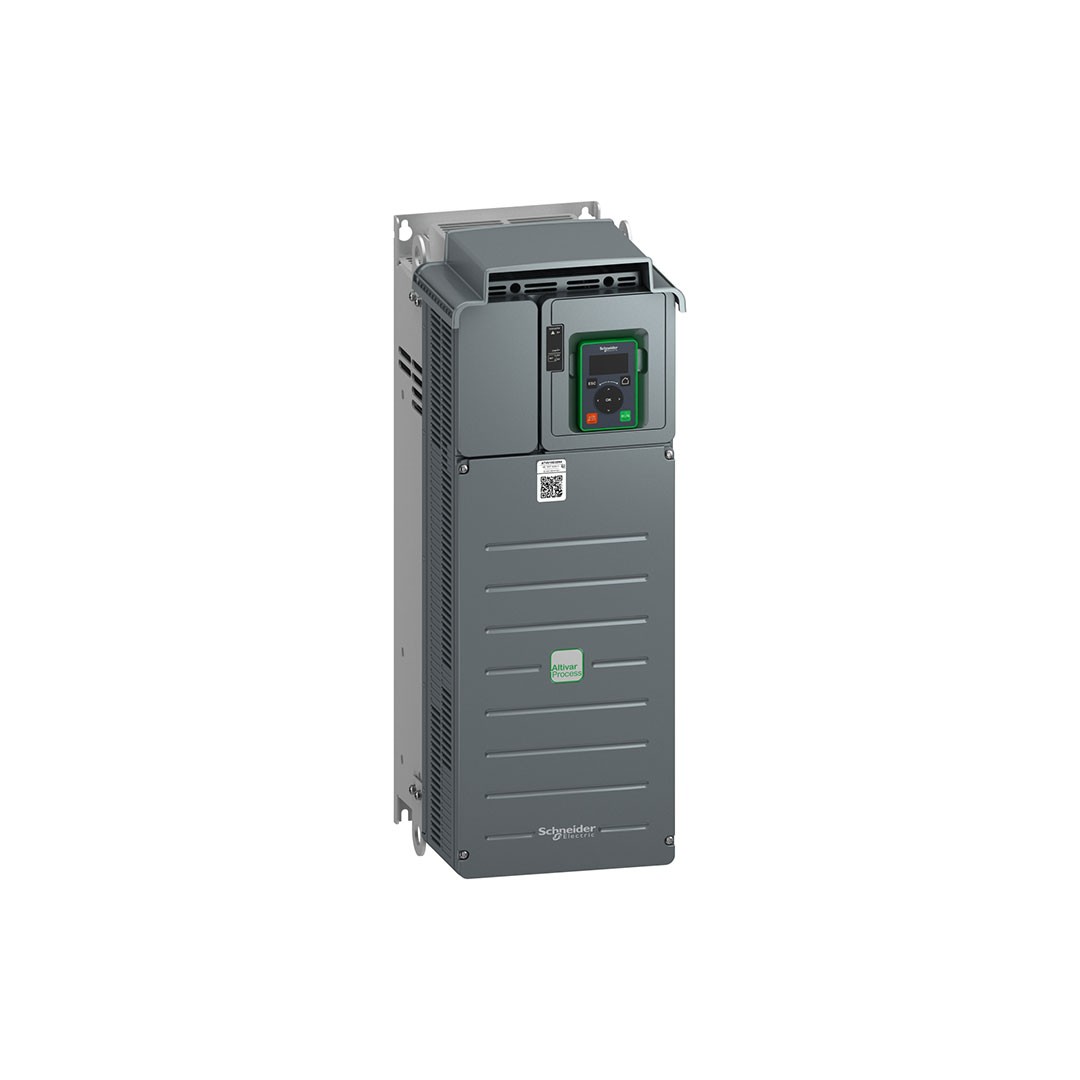

Range of productEasy Altivar 610Product or component typeVariable speed driveProduct specific application Fan, pump, compressor, conveyorDevice short nameATV610VariantStandard versionProduct destinationAsynchronous motorsSynchronous motorsMounting modeCabinet mountEMC filterIntegrated conforming to IEC 61800-3 category C3 with 50 mIP degree of protectionIP20type of coolingForced convectionSupply frequency50…60 Hz +/-5 %Network number of phases3 phases[Us] rated supply voltage380…460 V – 15…10 %Motor power kW22 kW for normal duty18.5 kW for heavy dutyMotor power hp30 hp for normal duty25 hp for heavy dutyLine current41.9 A at 380 V (normal duty)36.2 A at 460 V (normal duty)36 A at 380 V (heavy duty)31.6 A at 460 V (heavy duty)Prospective line Isc22 kAApparent power28.8 kVA at 460 V (normal duty)25.2 kVA at 460 V (heavy duty)Continuous output current46.3 A at 4 kHz for normal duty39.2 A at 4 kHz for heavy dutyMaximum transient current50.9 A during 60 s (normal duty)58.8 A during 60 s (heavy duty)Asynchronous motor control profileConstant torque standardVariable torque standardOptimized torque modeOutput frequency0.1…500 HzNominal switching frequency4 kHzSwitching frequency2…12 kHz adjustablenumber of preset speeds16 preset speedsCommunication port protocolModbus serialOption cardSlot A: communication card, Profibus DP V1Slot A: digital or analog I/O extension cardSlot A: relay output cardOutput voltage
